Some photos of my setup
Here are some photos of how I have rigged my Yamaha FX160 Cruiser.
I have been using telescopic fishing rods, which I collapse & put into self-adhesive foam rodholders when travelling from spot to spot. The fishfinder display is mounted in the cupholder on a stainless "cotton reel". I have never seen the mount, but imagine it will be very similar to Andrews product. I put a plastic tip (for chair legs) over the ff plug when the display is not attached to keep water out.

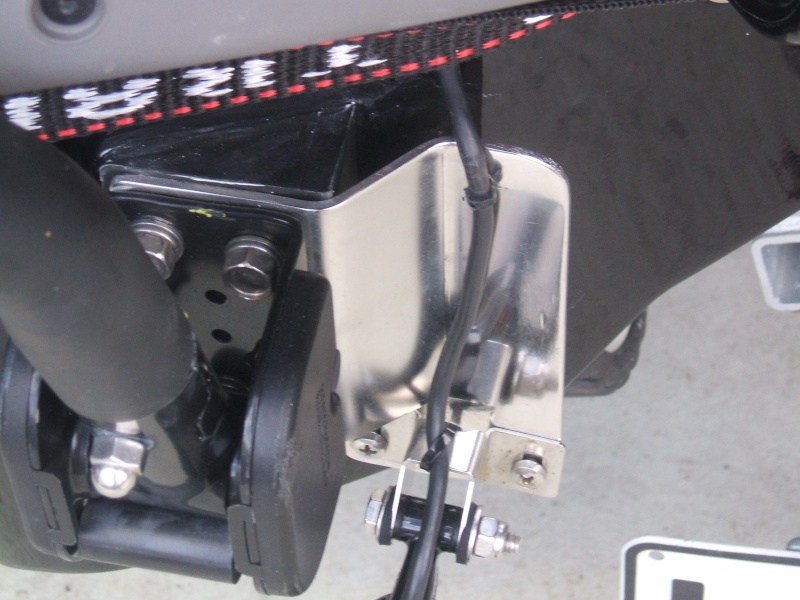

Here a few photos of the transducer setup. My reasons for ending up with this were:
Mounted from boarding step bolts so no holes drilled in hull
Mounted to the side to allow access to bung
Mounted close to rear of hull to get clean water flow (as needed for any transducer setups).
This involved getting a mount made that angled this way and that to achieve the end result.
The cost of the mounts and FF installation was not cheap at $660, plus $320 for the ff itself, but the easy way to justify the cost was to think if it saved the ski from hitting one rock it had paid for itself.
I have been using telescopic fishing rods, which I collapse & put into self-adhesive foam rodholders when travelling from spot to spot. The fishfinder display is mounted in the cupholder on a stainless "cotton reel". I have never seen the mount, but imagine it will be very similar to Andrews product. I put a plastic tip (for chair legs) over the ff plug when the display is not attached to keep water out.
Here a few photos of the transducer setup. My reasons for ending up with this were:
Mounted from boarding step bolts so no holes drilled in hull
Mounted to the side to allow access to bung
Mounted close to rear of hull to get clean water flow (as needed for any transducer setups).
This involved getting a mount made that angled this way and that to achieve the end result.
The cost of the mounts and FF installation was not cheap at $660, plus $320 for the ff itself, but the easy way to justify the cost was to think if it saved the ski from hitting one rock it had paid for itself.
Cigar-
Number of posts : 25
Location : Waikato
Registration date : 2009-07-04
Re: Some photos of my setup
Nice shots and good effort with the fitout. All you need (for Christmas) is an Ultimate Rod Holder and then you will enjoy the sport even more, but until then, I like your way of thinking!
2-EXTREME- Admin
-
Number of posts : 728
PWC : 2009 Yamaha FX HO 1.8 litre
Best fish landed on your ski : 8lb 9oz (Small Fulla Auw)
Age : 48
Location : Bucklands Beach
Job/hobbies : National Sales Manager
Humor : What do you think ...?
Registration date : 2008-10-14
Re: Some photos of my setup
Nope, Christmas is too far away - ordered and paid for an Ultimate Rod Holder yesterday!
I've bought a couple of decent 2 piece rods, and the missus complains about twisting around to get fish into the chilly bag tied to the back of the ski, so it had to be done. Wonder if that means she'll pay for it....might be pushing it seeing she paid for my new Backbone Elite rod... Though if I point out that she nearly always catchs more fish than me, she might agree she'll be using it the most
I've bought a couple of decent 2 piece rods, and the missus complains about twisting around to get fish into the chilly bag tied to the back of the ski, so it had to be done. Wonder if that means she'll pay for it....might be pushing it seeing she paid for my new Backbone Elite rod... Though if I point out that she nearly always catchs more fish than me, she might agree she'll be using it the most
Cigar-
Number of posts : 25
Location : Waikato
Registration date : 2009-07-04
Re: Some photos of my setup
very nice
salti 1-
Number of posts : 41
PWC : 2006 honda 1200 turbo
Best fish landed on your ski : snapper 10.3 lbs
Age : 57
Location : rotorua
Job/hobbies : Moulding technician/fishing and fishing
Humor : none
Registration date : 2009-07-27
FF mount?
where did you find this?
i need to do something like that.
thanks and nice setup...
i need to do something like that.
thanks and nice setup...
toolman-
Number of posts : 2
Location : south carolina
Registration date : 2009-08-10
Re: Some photos of my setup
Hi Toolman,
It was custom made. I explained (very clearly!) to the dealer what I wanted to do, and they took the ski down to the metalwork company they use, got a quote, and got it done. I can't see any reason a workshop in your area couldn't do the same, though I would recommend you use a place that does marine stainless work so they know the right materials to use.
If you want, PM me your e-mail address, and I'll take & send some more photos.
In hindsight, I didn't really need to go sideways to allow access to the bung as I rarely take the bung out. But it did allow the tranducer to sit further from the jet nozzle, closer to the hull, and behind a nice flat piece of the hull (all good for transducer performance). It also meant the transducer is higher up compared to the ride plate (less chance of wiping it off on something, which I suspect is not good for performance)
It was custom made. I explained (very clearly!) to the dealer what I wanted to do, and they took the ski down to the metalwork company they use, got a quote, and got it done. I can't see any reason a workshop in your area couldn't do the same, though I would recommend you use a place that does marine stainless work so they know the right materials to use.
If you want, PM me your e-mail address, and I'll take & send some more photos.
In hindsight, I didn't really need to go sideways to allow access to the bung as I rarely take the bung out. But it did allow the tranducer to sit further from the jet nozzle, closer to the hull, and behind a nice flat piece of the hull (all good for transducer performance). It also meant the transducer is higher up compared to the ride plate (less chance of wiping it off on something, which I suspect is not good for performance)
Cigar-
Number of posts : 25
Location : Waikato
Registration date : 2009-07-04
Re: Some photos of my setup
Hi Toolman, Jetskifishing supplies some mounting hardware similar to Cigars set up, email direct if if I can help at andrew@jetskifishing.co.nztoolman wrote:where did you find this?
i need to do something like that.
thanks and nice setup...
[img][/img]
[img][/img]
Re: Some photos of my setup
Jetskifishing wrote:Hi Toolman, Jetskifishing supplies some mounting hardware similar to Cigars set up, email direct if if I can help at andrew@jetskifishing.co.nztoolman wrote:where did you find this?
i need to do something like that.
thanks and nice setup...
[img][/img]
[img][/img]
e-mail sent...
toolman-
Number of posts : 2
Location : south carolina
Registration date : 2009-08-10
